Railway infrastructure requires not only strong rails and durable sleepers but also highly reliable fastening systems that can ensure stability, safety, and long service life. Among the various fastening methods available today, the HuiBo Railway's Nabla Clip Rail Fastening System has emerged as one of the most widely adopted and trusted solutions in modern rail networks. With its robust design, superior clamping force, and proven performance in heavy-load and high-speed applications, the Nabla Clip system continues to play a critical role in maintaining railway stability.
What Is a Nabla Clip Rail Fastening System?

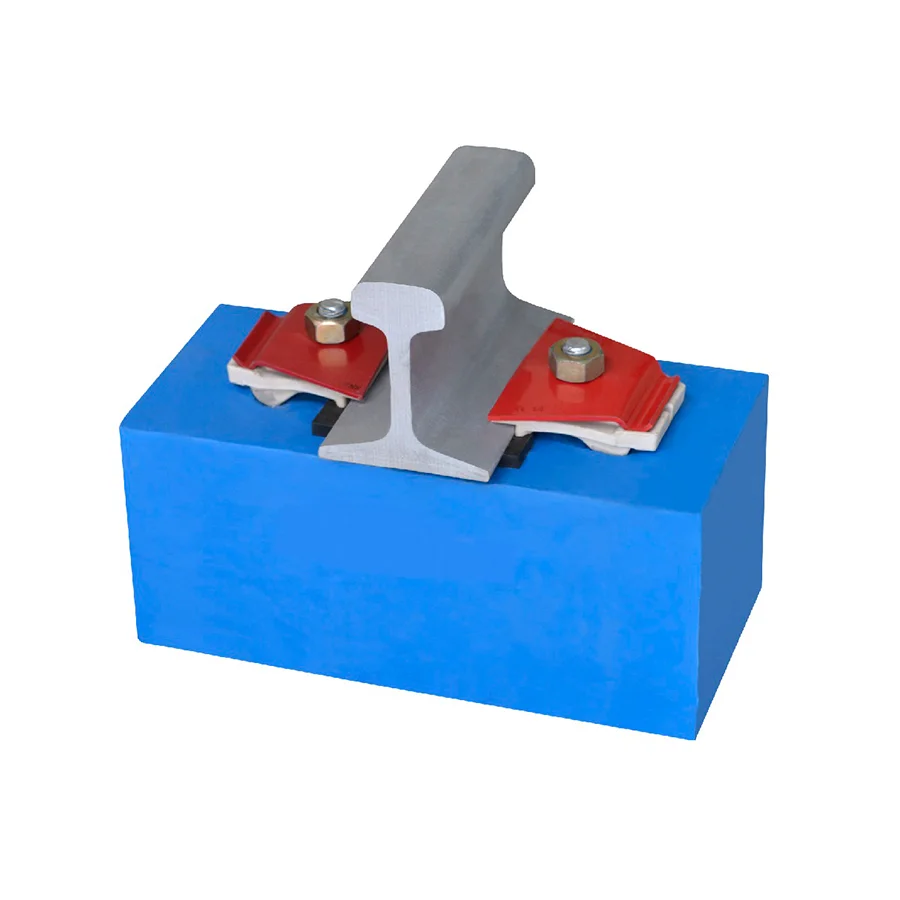

A rail fastening system is designed to fix rails securely to railway sleepers or railroad ties. Traditionally, such systems consist of rail anchors, tie plates, chairs, fasteners, spikes, screws, and bolts. The Nabla Clip Rail Fastening System builds on this principle, but with a modern twist—it uses specially engineered elastic clips shaped like the Greek letter “Nabla” (∇). These clips exert consistent pressure on the rail foot, ensuring that the rail remains firmly attached to the sleeper under varying loads, vibrations, and environmental conditions.
The design offers both strength and flexibility. Unlike rigid fastening methods, Nabla clips provide controlled elasticity, which helps absorb stresses generated by passing trains. This results in improved track stability, reduced maintenance requirements, and extended component life.
Key Components of the Nabla Clip Rail Fastening System
The Nabla Clip system is not a single part but an integrated fastening solution. Its core components typically include:
-
Nabla Clips – The elastic steel clips that provide the main clamping force to hold the rail in place.
-
Insulators or Bushings – Non-conductive materials that electrically insulate the rail from the sleeper and prevent current leakage.
-
Rail Pads – Placed under the rail, these pads absorb vibrations, reduce wear, and improve passenger comfort.
-
Anchoring Screws or Bolts – Used to secure the fastening assembly to the sleeper.
-
Baseplates or Tie Plates – Provide a stable interface between the rail and the sleeper, distributing loads more evenly.
Each component works together to ensure the rail is securely fixed while allowing a controlled degree of flexibility.
Advantages of Nabla Clip Rail Fastening System
The popularity of the Nabla Clip Rail Fastening System is no coincidence. It offers several key advantages that make it ideal for both conventional and high-speed railways:
-
High Clamping Force – The Nabla clip delivers a strong and consistent pressure on the rail, preventing rail movement under heavy loads.
-
Durability – Made of high-quality spring steel, Nabla clips maintain their elasticity and strength even after years of service.
-
Low Maintenance – The system’s resilience reduces the frequency of inspections and replacements, lowering overall maintenance costs.
-
Vibration and Noise Reduction – With insulating components and elastic pads, the system helps minimize vibration transfer and reduces noise levels.
-
Corrosion Resistance – Many Nabla clip systems are designed with anti-corrosion coatings or made of specially treated steel for long-term outdoor performance.
-
Compatibility – They are suitable for different rail sections and sleeper materials, making them versatile across various railway environments.
Applications in Modern Railways
The Nabla Clip Rail Fastening System is used worldwide in diverse railway applications. Some of its primary uses include:
-
High-Speed Railways – Where stability, safety, and vibration control are essential.
-
Heavy Haul Railways – For transporting coal, ore, and other heavy materials requiring strong fastening systems.
-
Urban Rail Transit – Including metro and light rail systems where noise reduction and safety are critical.
-
Standard Freight and Passenger Railways – Providing a reliable fastening method for everyday operations.
Its ability to perform in challenging environments, from freezing cold climates to hot and humid regions, further enhances its global adoption.
Why Choose Nabla Clip Fastening Over Other Systems?
While several fastening systems exist, including Pandrol clips and e-clips, the Nabla Clip Rail Fastening System offers a unique balance of strength, elasticity, and cost-effectiveness. Its design makes it particularly resistant to loosening, even under continuous train traffic and thermal expansion of rails. Moreover, the simplicity of installation and replacement ensures efficient rail construction and reduced downtime.
Manufacturing and Quality Standards
High-performance Nabla clip systems are manufactured under strict international railway standards. The clips are typically heat-treated for strength and elasticity, while other components undergo precision engineering to ensure exact fit and durability. Quality assurance processes include fatigue testing, corrosion resistance evaluation, and load performance checks. This guarantees that each Nabla Clip system can withstand the rigorous demands of modern railway operations.
Conclusion
The Nabla Clip Rail Fastening System represents a cornerstone of modern railway construction and maintenance. Its combination of high clamping force, durability, vibration reduction, and cost-effectiveness ensures reliable performance across various railway applications. For railway operators seeking stability, safety, and long service life, the Nabla Clip system remains one of the most dependable solutions available.
